Introduction:

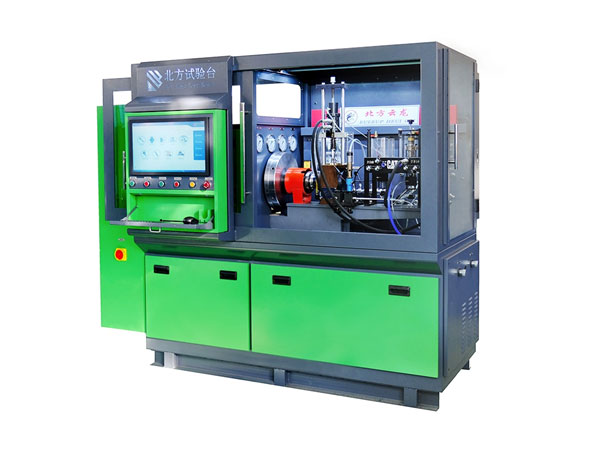

BF-YL comprehensive test bench is a set of electronic high pressure common rail pump,common rail,injector,HEUI,EUI EUP in one.It can test BOSCH/DELPHI/DENSO/SIEMENS electronically controlled high pressure common rail system,CAT etc.HEUI and CUMMINS/DELPHI etc. EUI EUP. The device adopts windows operating system,the control interface is simple and clear,and it can control the parameters of the the fuel pressure,pulse width,frequency and metering valve duty Ratio . Good stability and long service life.

Strength:

1.Test solenoid valve injectors and piezoelectric injectors,including dual solenoid valve injectors and have the function of detecting injection response time (BIP).

2.Test various common rail pumps.

3.Test Cat C7/C9/C-9,C3126 etc.HEUI injectors,test Cat Actuating pump.

4.Test EUI EUP,including Cummins double pulse M11,Delphi double solenoid valve E3,and have the function of testing injection response time (BIP).

5.Test solenoid valve resistance and inductance.

6.Test the resistance and capacitance of the piezoelectric injector.

7.Test and generate compensation codes for Bosch,Denso,Delphi,Cummins and Siemens injectors.

8.One-key online software upgrade,remote assistance operation.

Feature:

1.Real-time controlled by industrial computers,embedded operating system.

2.The rail pressure,pulse width,rotate speed,temperature will be displayed by 21 inch True color display screens.

3.Built-in more than 7600 kinds of injector data,more than 800 kinds of common rail pump data,more than 400 kinds of EUI EUP HEUI data are available for checking.

4.The test bench can be networked,the control system software can be upgraded online with one key,and remote assistance can solve customers' worries.

5.Can customize parameters such as rail pressure,pulse width,speed,and oil measurement times.

6.Intelligent algorithm,installation of DRV valve,rail pressure control is more accurate,pressure is more stable,and has ultra-high pressure protection function.

7.Two-stage filter for oil supply,in line with Euro III standards.

8.Short circuit protection function of test bench.

9.Automatic control of test oil temperature.

10.Provided with two oil supply motors for diesel and engine oil and two oil tanks to control the oil circuit separately.

11.Provided with special fixtures for testing common rail pumps and injectors

12.Provided with new cam box and matching adapter.

13.Provided with special fixtures for Caterpillar medium pressure injectors

14.Chinese,English and other language interface switching.

15.Safety protection design,safe and easy to operate.

Functions:

1.Test range:BOSCH,DENSO,DELPHI,SIEMENS and other brand injectors and common rail pumps.

2.Test the tightness of the high-pressure common rail injector and observe its atomization effect.

3.Measuring high-pressure common rail injector high-speed fuel quantity.

4.Measuring the high-pressure common rail injector mediumspeed fuel

quantity.

5.Measuring the high pressure common rail injector idle oil quantity.

6.Measuring high pressure common rail injector pre-injection conditions.

7.Measuring the fuel return quantity of the common rail injecto.

8.The high pressure common rail injector can be flushed under high pressure.

9.Test Denso HPO pump.

10.Test piezoelectric crystal injector.

11.Can test Cummins,Delphi,Carter and other unit pump nozzles.

12.Can test Cat C7 and C9 medium pressure injectors.

13.It can test the resistance and inductance of the injector.

14.It can test the response time of the injector.

15.Compensation codes for injectors such as Bosch,Denso,Delphi,Cummins,

etc.can be generated.

16.It can test the dynamic stroke of Bosch 110 and 120 series injectors.

Technical Parameters:
