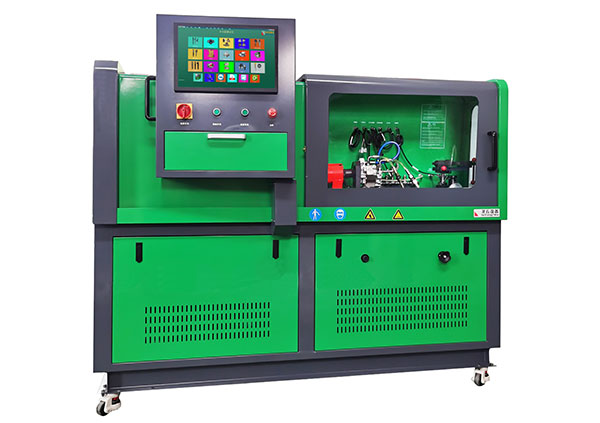

The BF319 electronic control diesel engine fuel injection system debugging test bench is an equipment that integrates electronic control high-pressure common rail oil pump, common rail pipe, and fuel injector detection.

It is possible to inspect and test electronic control high-pressure common rail systems such as BOSCH/DELPHI/DENSO/SIEMENS. Adopting a user-friendly control interface, it can control parameters such as fuel injection pressure, pulse width, frequency, and metering valve duty cycle. The system has good stability and a long service life.

Applicable to: fuel injectors and electronic fuel injection pumps

Highlights:

1. Equipped with Bosch CP3 high-pressure oil pump

2. Using Bosch common rail pipes and installing DRV valves (regulating pressure for more stable pressure)

3. Using high-precision gear flow meters for more accurate and stable measurements

4. Can detect high-pressure pumps from brands such as Bosch and Denso

5. Equipped with pump flow meter

Features:

1. Real time control of industrial computers, convenient and fast Windows operating system

2. Fuel measurement, rail pressure, pulse width, speed, temperature, etc. are all displayed on the LCD screen

3. Built in data from over 7000 fuel injectors and over 800 common rail pumps for testing and querying

4. The device can be connected to the internet for one click upgrade and can be operated remotely (corresponding software needs to be installed)

5. Users can customize parameters such as rail pressure, pulse width, frequency, speed, etc

6. Installing DRV valve for more precise rail pressure control, more stable pressure, and ultra-high pressure protection function

7. Adopting two-stage filtering oil supply, in compliance with Euro III standards

8. Test bench short-circuit protection function

9. Experimental oil temperature automatic control, refrigeration mode axial flow fan

10. Equipped with high-precision flow sensors

11. Equipped with specialized fixtures for detecting common rail pumps and injectors

12. Multiple language interface switching, can translate other languages as needed

Function:

1. Testing scope: BOSCH, DENSO, DELPHI, SIEMENS and other brands of fuel injectors and common rail pumps

2. Test the performance of the fuel metering valve of the common rail pump

3. Check the sealing and fuel supply performance of the common rail pump

4. Testing the performance of common rail pressure sensors

5. Test the sealing performance of high-pressure common rail injectors

6. Measure the high-speed fuel volume of high-pressure common rail injectors

7. Measure the medium speed fuel quantity of the high-pressure common rail injector

8. Measure the idle fuel volume of the high-pressure common rail injector

9. Measure the pre injection amount of high-pressure common rail injectors

10. Measure the return oil volume of the high-pressure common rail injector

11. Can perform high-pressure flushing on high-pressure common rail injectors

12. Detectable electric HPO pump

13. Detectable piezoelectric crystal fuel injector

Technical parameters:
