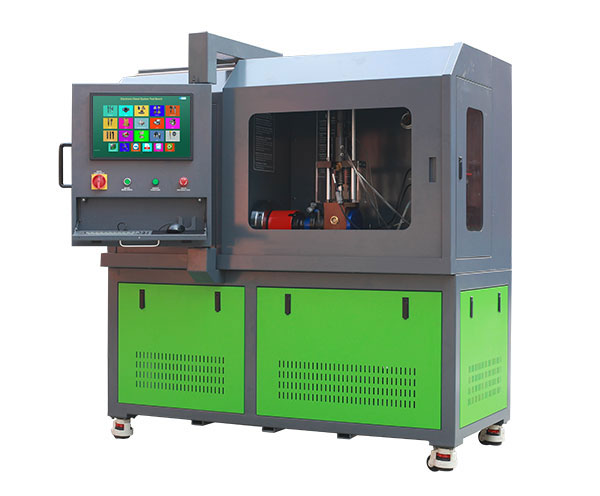

The BF316C comprehensive test bench is an equipment that integrates electronic control of high-pressure common rail oil pump, common rail pipe, fuel injector, medium pressure common rail fuel injector, and unit pump nozzle detection. It can detect and test electronic high-pressure common rail systems such as BOSCH/DELPHI/DENSO/SIEMENS, medium pressure common rail injectors such as CAT, and individual pump nozzles such as CUMMINS/DELPHI.

This device uses the Windows operating system, with a simple and clear control interface that can control parameters such as injection pressure, pulse width, frequency, and metering valve duty cycle. Good stability and long service life.

The control system, hardware circuit, and software system of the test bench have been newly developed and constructed, with innovative circuit and software programming that can be remotely controlled and upgraded with just one click online.

Main Features:

1. Detect various solenoid valve injectors and piezoelectric injectors, including dual solenoid valve injectors, and have the function of detecting injection response time (BIP).

2. Detect various common rail oil pumps.

3. Detect HEUI injectors such as Caterpillar C7/C9/C-9, C3126, and various unit pumps and pump nozzles, including Cummins dual pulse M11, Delphi dual solenoid valve E3, and have the function of detecting fuel injection response time (BIP).

4. Check the resistance and inductance of the solenoid valve.

5. Detect the resistance and capacitance of piezoelectric fuel injectors.

6. Can detect and generate compensation codes for Bosch, Denso, Delphi, Cummins, and Siemens fuel injectors.

7. One click online software upgrade and remote assistance for operation

Features:

1. Real time control of industrial computers, convenient and fast Windows operating system

2. The fuel measurement, rail pressure, pulse width, speed, temperature, etc. are all displayed through a 19 inch touch screen

3. Built in over 7600 types of common rail injector data, over 1000 types of common rail pump data, over 400 types of individual pump nozzle data, and multiple types of medium pressure injector data for testing and querying

4. The device can be connected to the internet, and the control system software can be upgraded online with just one click, providing remote assistance to solve customers' worries.

5. Users can customize parameters such as rail pressure, pulse width, speed, and fuel quantity

6. Intelligent algorithm, open-loop control, installation of DRV valve, more precise rail pressure control, more stable pressure, and ultra-high pressure protection function

7. Adopting two-stage filtration for fuel supply, in compliance with Euro III standards

8. Short circuit protection function of the test bench

9. Automatic control of experimental oil temperature

10. The test bench is equipped with two fuel supply motors for diesel and engine oil, as well as two fuel tanks, which control the oil circuit separately

11. Equipped with specialized fixtures for detecting common rail pumps and injectors

12. Equipped with a new cam box and matching adapter

13. Equipped with special fixtures for Caterpillar medium pressure fuel injectors

14. Switching between Chinese, English and other language interfaces

15. Safety protection design, safe and easy operation

Function:

1. Testing scope: Fuel injectors and common rail pumps from brands such as BOSCH, DENSO, DELPHI, SIEMENS, etc

2. Testing the sealing performance of high-pressure common rail injectors and observing their atomization effect

3. Measure the high-speed fuel quantity of the high-pressure common rail injector

4. Measure the medium speed fuel quantity of the high-pressure common rail injector

5. Measure the idle fuel quantity of the high-pressure common rail injector

6. Measure the pre injection quantity of the high-pressure common rail injector

7. Measure the return oil volume of the high-pressure common rail injector

8. Can perform high-pressure flushing on high-pressure common rail injectors

9. Can detect common rail pumps such as Bosch and Denso HPO

10. Detectable piezoelectric crystal fuel injector

12. Can detect nozzles of individual pumps such as Cummins, Delphi, Caterpillar, etc

13. Can detect Carter C7 and C9 medium pressure fuel injectors

14. Can detect the resistance and inductance of the fuel injector

15. Can detect the response time of fuel injectors

16. Can generate compensation codes for fuel injectors such as Bosch, Denso, Delphi, Cummins, etc

17. Can detect the dynamic stroke of Bosch 110 and 120 fuel injectors
