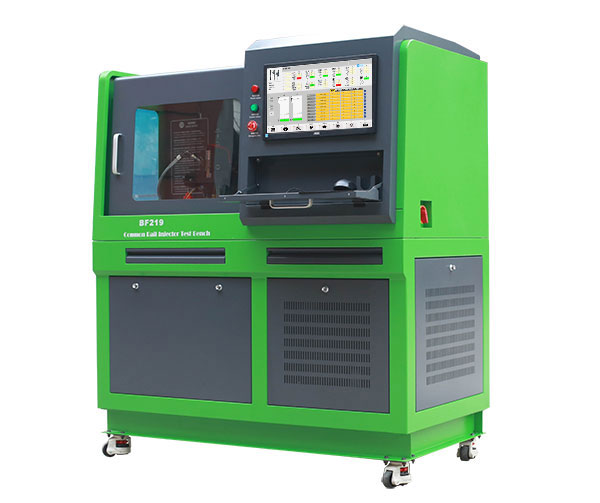

BF219 high-pressure common rail injector test bench is a device for detecting common rail injectors. Can inspect and test fuel injectors from brands such as Bosch, Denso, Delphi, Siemens, and Cummins. This device adopts a user-friendly control interface, which can control parameters such as pressure, pulse width, frequency, etc.

Highlights:

1. Use Bosch CP3 high-pressure oil pump;

2. Install DRV valve to regulate the pressure of the test bench, making the pressure more stable;

3. Using dual high-precision flow meters to simultaneously detect fuel injection and return, the measurement is fast, accurate, and stable;

4. Can generate fuel injector compensation codes;

5. Can detect the dynamic stroke of fuel injectors;

6. Equipped with a new common rail injector fixing bracket, the built-in injector can be directly assembled.

Characteristic:

Operating System: Windows 7 Operating System

LCD monitor

Maximum pressure 260MPa

Customizable project pressure, pulse width, oil measurement time, etc. can be set manually

Intelligent algorithm for system protection, more precise control of rail pressure, with ultra-high voltage protection function

Dynamic travel has dynamic travel measurement function

Drive voltage drive voltage automatic conversion, separate interface for piezoelectric voltage

More than 7600 types of fuel injector data are available for testing and querying

Networking function connects to the internet, allowing for one click upgrade and remote operation

The oil temperature control test bench can automatically adjust the temperature of the test oil

Oil measurement method with dual flow meters, displaying both fuel injection and return simultaneously

The language test bench comes with multiple languages and can also translate other languages as needed

Function:

Testing scope includes common rail injectors from brands such as Bosch, Denso, Delphi, Siemens, Cummins, as well as domestically produced injectors

Detecting the type of fuel injector can detect ordinary electromagnetic fuel injectors and piezoelectric crystal fuel injectors.

Testing quantity: Each time one injector is tested, the testing results of six injectors can be displayed simultaneously.

Detectable working conditions can detect the full load fuel injection and return, medium speed fuel injection, idle fuel injection, pre injection fuel injection and return, and sealed return oil volume of the fuel injector.

Electromagnetic valve detection can detect the resistance and inductance of the fuel injector solenoid valve, indicating abnormal function of the solenoid valve.

Custom detection items such as pressure, pulse width, and oil measurement time can be set manually.

Other testing items can generate fuel injector compensation codes and detect the dynamic stroke of fuel injectors.

Technical parameters:

Test bench name and model: High pressure common rail injector test bench BF219

Rated output power:4KW

Host power supply:three-phase 380V/50HZ

Test bench speed:0-1500 revolutions per minute

Continuous fuel injection frequency:0-1000 times

Rail pressure:0-2600 bar

Flow mete:dual flow meter (one for each fuel injection and return)

Pulse width:100-3000 μ s

Oil temperature control:38 ± 2 ℃

The filtration accuracy of the experimental oil is less than 5 μ m

Fuel tank capacity:50L

Test bench size:1400x830x1580 (mm) (including Fuma wheel)

Packaging size:1630x950x1730 (mm)

Test bench weight:400kg
