>>>>>>>Introduction

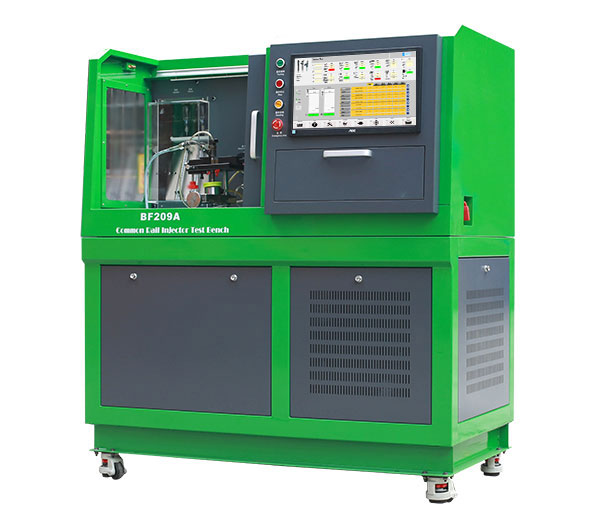

Common rail test bench BF209A is the equipment which used to test common rail injectors like BOSCH/ DELPHI /DENSO /SIEMENS etc brands. This equipment consists of original BOSCH CP3 pump and common rail pipe, humanized control interfaces, can control the parameters of the fuel pressure, pulse width, frequency and metering valve duty Ratio. The equipment uses the measuring cup and flow sensor for testing.

>>>>>>Features

1. Real-time controlled by industrial computers, embedded operating system

2. The rail pressure, pulse width, rotate speed, temperature will be displayed by 21 inch True color display screens ,and the oil measuring test result display by measuring glasses.

3. Adopts Bosch high pressure common rail fuel injection pump and ultra-high   pressure common rail pipe to produce 0 ~ 2600bar pressure

4. Users can customize rail pressure, pulse width,fuel measuring time and other parameters

5. Intelligent PID arithmetic, the rail pressure will be more accurate under the closed-loop control, and with ultrahigh pressure protection function

6. Automatic switching impulsing power source

7. More than 7600 kinds of injector data built-in can be inquired

8. The equipment has the network function, connect the Internet can do one click- in upgrades and the remote operation

9. The short-circuit protection function

10. Automatic controlled of fuel temperature

11. Provided with a special fixture for testing injector

12. Many language interfaces can be switched

13. Security protective design, operational safety, simple and convenient

>>>>>>>Special Functions

1. It can automatically generate 6, 7, 8, 9, and 10 IMS codes of Bosch.

2. It can automatically generate codes of ISA code of BOSCH piezoelectric injector

3. It can automatically generate the QR code of Denso

4. It can automatically generate codes of Delphi C2I and C3I

5. It can automatically generate codes of Delphi IIC

6. It can automatically generate codes of Siemens (VDO) IIC

7. It can automatically generate codes of Cummins XPI

>>>>>>>Testing

1.The detection range: BOSCH, DENSO, DELPHI, SIMENS etc brands Injectors

2.Test one common rail injector

3.Test high pressure common rail injector sealing and observe the atomizing effect

4.Measuring the high-speed fuel of the common rail injector

5.Measuring the medium-speed oil of the common rail injector

6.Measuring the idle-speed of the common rail injector

7.Measuring the pre-injection quantity of the common rail injector

8.Measuring the fuel return quantity of the common rail injector

9.High pressure common rail injector can be washed

10.Users can setting the characteristics of rail pressure, pulse width and fuel measuring time

>>>>>> Technical Parameters
