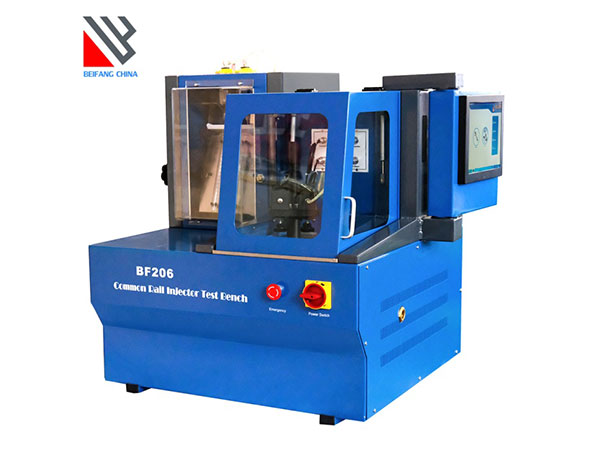

BF206 high pressure common rail injector test bench, is a common rail injector testing equipment. The injector can be tested and tested for Bosch, Denso, Delphi, Siemens, Cummins and other brands. The device adopts humanized control interface, which can control pressure, pulse width, frequency and other parameters.

Brightened Dot:

1. Use servo motor to drive Bosch CP3S high pressure oil pump;

2. the use of Bosch common rail tube, Cummins pressure sensor, ultra-high pressure design, installation of HPV valve for adjusting the pressure of the test bench, so that the pressure is more stable;

3. the use of gear flow meter, accurate and stable measurement;

4. use measuring cup and flowmeter two detection methods;

5. the equipment is small and light, using 220V voltage

6. can detect the generation of fuel injector compensation code

Characteristic:

1. Industrial computer real-time control, windows operating system

2. Oil measurement, rail pressure, pulse width, speed, temperature, etc. are all displayed through the 12 Inch Touch screen

3. Bosch high pressure common rail fuel injection pump is used to generate 0 ~ 2300bar pressure

4. Users can customize parameters such as rail pressure, pulse width, oil measuring time, etc

5. Intelligent PID algorithm, more accurate rail pressure control, and ultra-high voltage protection function

6. 12v/24v automatic conversion of pulse power supply

7. Built in more than 5000 injector data can be queried

8. The device has network function. After networking, it can be upgraded with one key and operated remotely

9. Short circuit protection function of test bench

10. Automatic control of test oil temperature

11. Multi language interface switching, you can translate other languages and add them to the system

12. Safety protection design, safe and simple operation

Function:

1. Test scope: fuel injectors of Bosch, Denso, Delphi, Siemens, Cummins and other brands

2. Test 1 common rail injector

3. Test the tightness of high pressure common rail injector and observe its atomization effect

4. Measure the high-speed fuel volume of the high-pressure common rail injector

5. Measure the medium speed fuel volume of the high-pressure common rail injector

6. Measure the idle fuel volume of the high-pressure common rail injector

7. Measure the pre injection quantity of the high-pressure common rail injector

8. Measure the return oil quantity of the high-pressure common rail injector

9. The high-pressure common rail injector can be flushed under high pressure

10. Piezo crystal injector can be detected

Technical parameters:

Name and model of test bench: high pressure common rail injector test bench bf206

Rated output power: 3.6kw servo motor

Host power supply: 220v/50hz

Test bench speed: 0 ~ 1500 rpm

Continuous injection times: 0 ~ 1000 times

Rail pressure: 0 ~ 2300 bar

Pulse width: 100 ~ 3000 μ s

Oil temperature control: 38 ± 2 ℃

Filter accuracy of test oil: less than 5 μ

Tank volume: 20L

Test bench size: 1225x890x925 (mm)

Net weight of test bench: 180kg

Including package weight: 230kg
