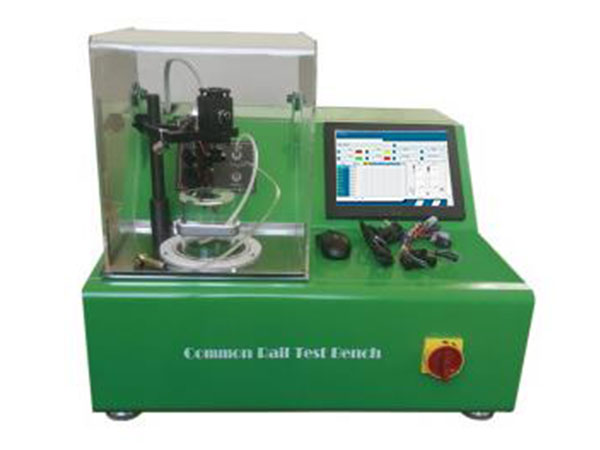

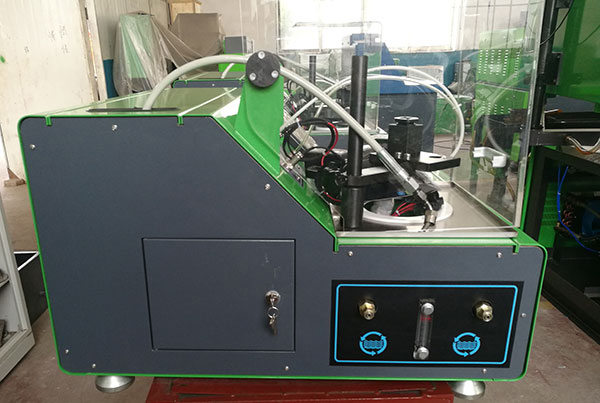

BF200 is a specialized equipment used for detecting electronic fuel injectors from brands such as BOSCH DENSO DELPHI Siemens. This device adopts industrial computer real-time control, embedded operating system, touch screen operation, and more precise and stable control of the injector solenoid valve. This device adopts fully automatic testing and generates test data automatically.

Characteristic:

1. Real time control of industrial computer, Windows operating system, touch screen operation

2. The fuel measurement, rail pressure, pulse width, speed, temperature, etc. are all displayed on a 12 inch touch screen

3. Bosch high-pressure common rail fuel injection pump is used to generate a pressure of 0-1800 bar

4. Intelligent algorithm, using DRV to regulate pressure for more stable and accurate control, and with ultra-high pressure protection function

5. Automatic conversion of pulse power supply

6. Built in over 7000 types of fuel injector data that can be queried

7. The test bench has internet access function, which can be connected wirelessly or wired, and can be upgraded with one click

8. Safety protection design, safe and easy operation

Function:

1. Testing scope: BOSCH, DENSO, DELPHI, SIEMENS and other brand electronic fuel injectors

2. Automatic control of electronic fuel injector testing

3. Test the sealing performance of electronic fuel injectors

4. Measure the fuel injection and return quantities of electronic fuel injectors under various operating conditions

5. Can perform high-pressure flushing on electronic fuel injectors

6. Can set the injection state and fuel quantity measurement of the electronic fuel injector

7. Detectable piezoelectric crystal fuel injector

8. Users can customize parameters such as rail pressure, pulse width, and fuel measurement time

Technical parameter:

Test bench name and model: Common rail injector test bench BF200

Rated output power :2.6KW (servo motor)

Host power supply:single-phase 220V 50Hz

Spindle speed :0~1500 revolutions per minute

Continuous fuel injector frequency: 0~1000 times

Rail pressure :0~1800bar

Pulse width :100~3000 μ s

Temperature control :38 ± 2 ℃

The filtration accuracy of the experimental oil:less than 5 μ m

Fuel tank capacity :6L

The external dimensions of the test bench :800x900x680 (mm)

Net weight of the test bench : 120kg
