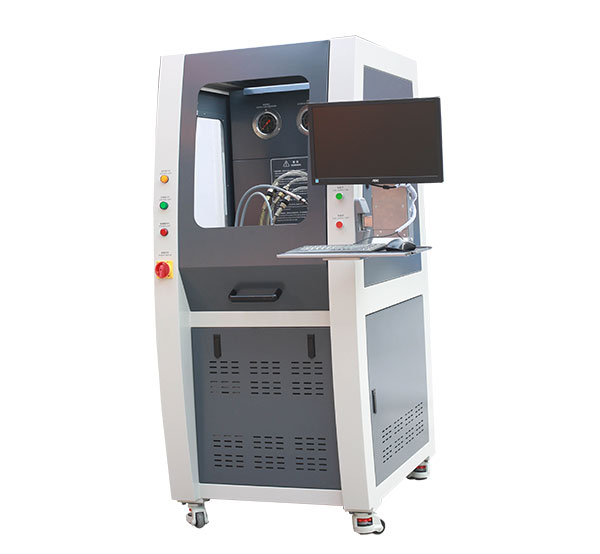

The BF329 electronic control diesel engine fuel injection system debugging test bench is an equipment that integrates electronic control high-pressure common rail fuel pump, common rail pipe, and fuel injector testing.

It can detect and test electronic control high-voltage common rail systems such as BOSCH/DELPHI/DENSO/SIEMENS. Adopting a user-friendly control interface, parameters such as injection pressure, pulse width, frequency, and metering valve duty cycle can be controlled. Good system stability and long service life.

Applicable to: electronic common rail injectors and electronic fuel injection pumps

Highlights:

1. Equipped with Bosch CP3 high-pressure oil pump

2. Use Bosch common rail pipe and install DRV valve (adjust pressure for more stable pressure)

3. Using high-precision gear flowmeter for more accurate and stable measurement

4. Can detect high-pressure pumps from brands such as Bosch and Denso

5. Detectable dual metering unit common rail pump

6. Equipped with pump flowmeter

Features:

1. Real time control of industrial computers, convenient and fast Windows operating system

2. The fuel measurement, rail pressure, pulse width, speed, temperature, etc. are all displayed on the LCD screen

3. Built in over 7600 types of fuel injector data and over 800 types of common rail pump data for testing and querying

4. The device can be connected to the internet for one click upgrade and can be remotely operated (corresponding software needs to be installed)

5. Users can customize parameters such as rail pressure, pulse width, frequency, speed, etc

6. Install DRV valve for more precise rail pressure control, more stable pressure, and ultra-high pressure protection function

7. Adopting two-stage filtration for fuel supply, in compliance with Euro III standards

8. Short circuit protection function of the test bench

9. Experimental oil temperature automatic control, cooling method axial flow fan

10. Equipped with high-precision flow sensors

11. Equipped with specialized fixtures for detecting common rail pumps and injectors

12. Multiple language interface switching, can translate other languages as needed

Function:

1. Testing scope: Fuel injectors and common rail pumps from brands such as BOSCH, DENSO, DELPHI, SIEMENS, etc

2. Test the performance of the common rail pump fuel metering valve

3. Test the sealing and fuel supply performance of the common rail pump

4. Detect the performance of sensors such as DRV and rail pressure sensors

5. Detecting dual metering unit common rail pump

6. Test the sealing performance of high-pressure common rail injectors

7. Measure the high-speed fuel quantity of the high-pressure common rail injector

8. Measure the medium speed fuel quantity of the high-pressure common rail injector

9. Measure the idle fuel quantity of the high-pressure common rail injector

10. Measure the pre injection quantity of the high-pressure common rail injector

11. Measure the return oil volume of the high-pressure common rail injector

12. Can perform high-pressure flushing on high-pressure common rail injectors

13. Detectable electric HP0 pump

14. Detectable piezoelectric crystal fuel injector

15. Detectable fuel injection response time

16. Can detect the dynamic stroke of fuel injectors

Technical parameters:
