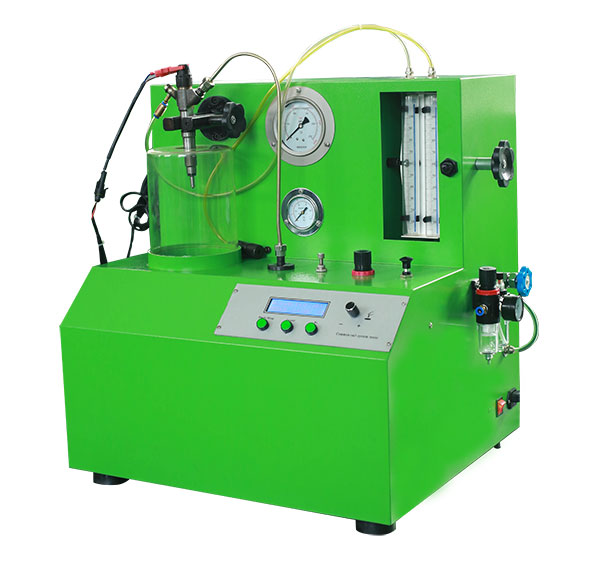

Common Rail Injector Test Bench PQ1000
1. Introduction
Common rail injector test bench PQ1000, which is used to test the common rail injector, and it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
1. It is small but of good quality performance. Save your transportation cost.
2. It can test Bosch, Denso, Delphi, Siemens injectors.
3. It is with ultrasonic cleaning function.
1. Check the injector starting pressure, Assessment of the injector spray fog quality, Inspection of the injector spray oil range, the injector seal and angel and the injector oil flow
2. The machine has fog dissipation convulsion device to improve the work condition.
3. It has two grade filter to ensure the cleanliness of test.
4. The parameter of common rail injector (fuel spray counts, frequency, pulse width, pressure etc.) can be set willfully.
4. Technial Parameters
1. Main voltage: 220V
2. Main frequency: 50/60Hz
3. Max filling volume per tank: 2L
4. Input system pressure (bar/psi): 0-10/ 0-145
5. System build-up pressure (bar/psi): 0-1800/ 0-26100
6. Size: 650*400*500mm
7. Weight: 85kg
8. Air gauge: 0-1.6Mpa.
9.Measuring cup: 90ml/2piece.
10. Fuel tank: 2.5L.
11. Air in: 0.8Mpa, 36L/Min.
12. Electrical power in: AC220V/50(60) Hz
