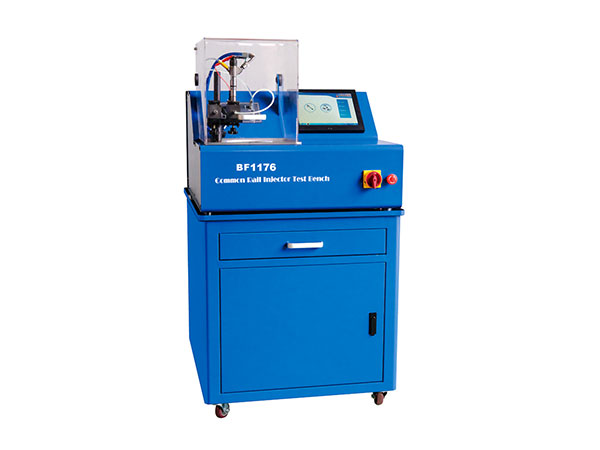

The BF1176 common rail injector test bench is a specialized equipment used to test electronic injectors from brands such as BOSCH/DENSO/DELPHI/Siemens. This device adopts industrial computer real-time control, embedded operating system, touch screen operation, and more precise and stable control of the injector solenoid valve. It adopts fully automatic testing and generates test data automatically. The equipment was tested using Bosch CP3 fuel injection pump and high-precision flow meter, and the test results were accurate and stable.
Characteristics:
1. Real time control of industrial computers, embedded operating systems, touch screen operation
2. The fuel measurement, rail pressure, pulse width, speed, temperature, etc. are all displayed on a 12 inch touch screen
3. Using Bosch high-pressure common rail fuel injection pump to generate 0-2200 bar pressure
4. Intelligent algorithm, closed-loop control, more precise rail pressure control, and ultra-high voltage protection function
5. Automatic conversion of pulse power supply
6. Built in 7600+types of fuel injector data can be queried
7. The test bench has internet access function, which can be connected wirelessly or wired, and can be upgraded with one click
8. Multi language interface switching
9. Automatic oil temperature control
Function:
1. Testing scope: BOSCH, DENSO, DELPHI, SIEMENS and other brand fuel injectors
2. Detect 1 common rail injector
3. Testing the sealing performance of high-pressure common rail injectors and observing their atomization effect
4. Measure the high-speed fuel quantity of the high-pressure common rail injector
5. Measure the medium speed fuel quantity of the high-pressure common rail injector
6. Measure the idle fuel quantity of the high-pressure common rail injector
7. Measure the pre injection quantity of the high-pressure common rail injector
8. Measure the return oil volume of the high-pressure common rail injector
9. Can perform high-pressure flushing on high-pressure common rail injectors
10. Detectable piezoelectric crystal fuel injector
Technical parameters:
|
Test Bench Name And Model |
BF1176 Common rail injector test bench |
|
Rated Output Power |
4KW |
|
Host Power Supply |
Three phase 380V/50Hz (two 220V/50Hz) |
|
Test Bench Speed |
0-3600 revolutions per minute |
|
Continuous Fuel Injection Frequency |
0-1000 times |
|
Rail Pressure |
0～2300 bar |
|
Pulse Width |
100～3000μs |
|
Oil Temperature Control |
38±2℃ |
|
Test Oil Filtration Accuracy |
Less than 5 μ m |
|
Flow Meter Flow Rate |
0.05L/min |
|
Fuel Tank Capacity |
20L |
|
Test Bench Size |
900×780×1470（mm） |
|
Package Size |
990*860*1580(mm) |
|
Test Bench Weight |
260kg |
