1.Introduction

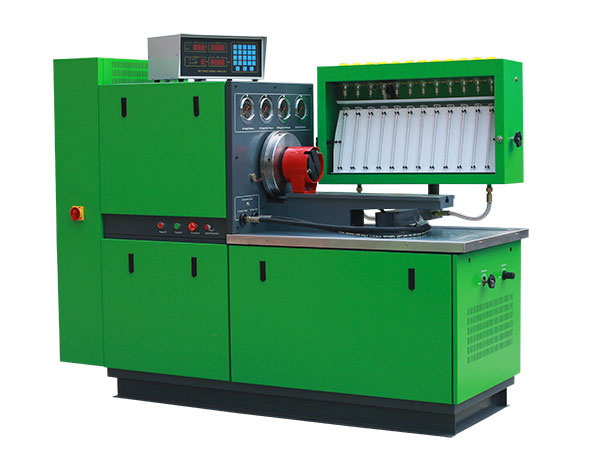

Diesel fuel injection pump test bench 12PSB-BFC is a high quality test bench for mechanical pumps, like inline pumps, distributor pumps. Can perform various function's adjusting and testing to the injection pump.

2.Feature

>>> Controlled by digital meter

>>> Frequency control of motor speed

>>> Big output torque, small reducing speed, high precision measurement

>>> Ten gears rotate speed reset

>>> Rotate speed, counting and temperature digital displayed by control panel

>>> Fuel oil temperature automatic control

>>> With overpressure, overload and overheating protection functions

>>> Automatic oil measuring plate(optional install)

3.Function

>>> Test each cylinder's oil supply quantity under different rotate speed.

>>> Check each cylinder's injection timing under static state.

>>> Check the performance of mechanical governor.

>>> Test the electromagnetic valve of distributor pump

>>> Test the tightness of injection pump.

>>> Measure the pump body internal pressure and oil return pressure of distributor pump.

>>> Check the performance of pressure equalizer, pneumatic governor.

>>> Equipped with DC.1 2V/24V power supply, used for magnetic valve's driving and testing.

4. Technical Parameters
